Lonsdor K518ISE Program Volvo S60 2013- 2016 Smart Key

Here's the operation guide of Volvo S60 2013-2016 half-keyless smart key programming with Lonsdor k518ISE key programmer.

Remove CEM module from Volvo S60
Connect K518 host with vehicle via OBD diagnostic socket
Select Immobilizer->Volvo->S60->Smart key (half keyless)

Select Read CEM security data

Plug the external 12V power supply and connect the KPROG-2 adapter to Lonsdor K518ISE host

connection between KPROG adapter and main host is built

Reading security data and save bin file

Select Add key function

This function require to load the security data

Load CEM data just read

Press Start button
Communicating...
Lonsdor k518 read vehicle information, part number, VIN, key numbers

Insert new key to be programmed into the card slot

Identified keys programmed: 4

Program completed

Test the remote

Working!!!
http://www.obdii365.com/producttags/lonsdor-k518ise.html

http://www.skp1000.org/lonsdor-k518ise-program-volvo-s60-2013-2016-smart-key/

Lonsdor K518ISE Program Ford Kuga 2015 Smart Remote

Lonsdor K518ISE key programmer new success model: Ford Escape Kuga year 2015 keyless system 4-button smart remote key.

2 remote keys are required,  original key and a new key

Connect K518ise host with vehicle via OBD diagnostic socket
Select Immobilizer->Ford->Kuga->2015->Smart Key->Add key

Insert new key and turn ignition switch on

Lonsdor K518 identified current number of keys: 3

Configuring sytsem
Reading PIN code automatically in progress

Program a new key success

Select Add remote

Reading pin code again
Configuring system
Press the Unlock button of the remote key for 1 sec within 15 sec

Lonsdor K518ISE program Kuga 2015 keyless remote success.

Test the new remote key.


http://www.skp1000.org/lonsdor-k518ise-program-ford-escape-kuga-2015-keyless-remote/

Lonsdor K518ISE Read Pin Code for Peugeot 308 2017

Lonsdor K518ISE key programmer has successfully read 4-digit pin code on a Peugeot 308 year 2017 by OBD within 5 seconds.

Connect K518 host with vehicle via OBD diagnostic socket

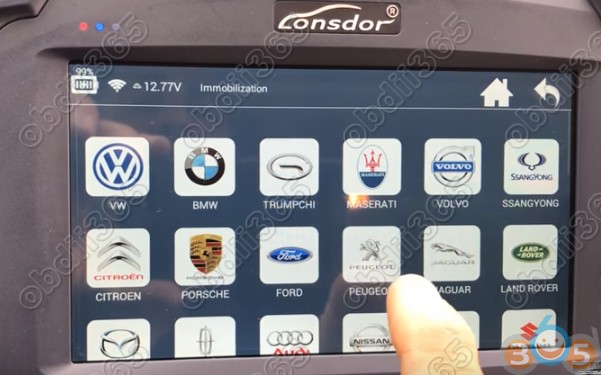

Select Immobilizer->Peugeot->Read Pin Code->Type 1

Insert a working key and turn ignition switch to ON position

Reading pin code in progress

Lonsdor K518 read Peugeot 308 2017 4-digit pin code success

http://www.obdii365.com/wholesale/lonsdor-k518ise-key-programmer.html

http://www.skp1000.org/lonsdor-k518ise-read-peugeot-308-2017-pin-code/

Lonsdor K518ISE Program Toyota Innova 2015 4D Chip Key by OBD

Lonsdor K518ISE key programmer has successfully tested on a Toyota Innova year 2015 middle east model when all keys have lost by OBD.

Connect K518ISE host with vehicle via OBD diagnostic socket
Turn ignition on

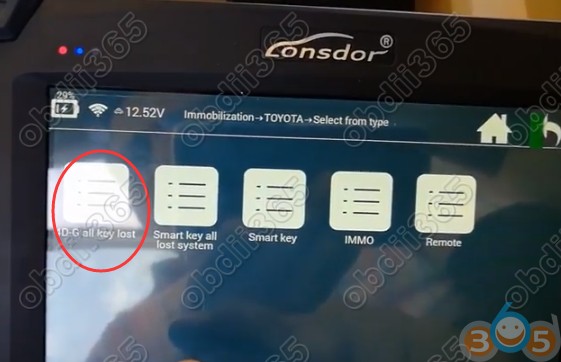

Select Immobilizer->Toyota->Select from type->4D-G all key lost->Immobilizer (4D-G-H-8A)

Select Reset Immobilizer (4D all key lost)

Stat to reset immobilizer

Turn ignition off
Turn ignition on
Configuring system
Turn ignition off and remove key

Turn ignition on again
Key programming is in progress

If Lonsdor K518 prompts "Immobilizer failed" error, do following:

Select Immobilization function

Remove key within 120 sec and insert the 1st key to be programmed

Communication processing
Programming key
Programming completed

Test the new key.

http://www.obdii365.com/wholesale/lonsdor-k518ise-key-programmer.html

http://www.skp1000.org/lonsdor-k518ise-program-toyota-innova-2015-all-keys-lost/
