Lonsdor KH100+ Copy Toyota Avalon 2016 8A Smart Key

 Some users consulted us how to copy Toyota & Lexus 8A or 4D smart keys using Lonsdor KH100+ key copy machine. Here’s the clue. Same procedure with K518 series.

Model example: Toyota Avalon 2016 8A smart key

Compatible keys: Lonsdor FT series, PH0440B or the new LT20 8A/4D 2 in 1 smart key

This is original key

Lonsdor key



Identify original key information
It is an 8A Chip 128bit smart key, locked, can be copied.
P4 page is AA AA

Internet is required to copy the smart key

Put original smart key into kh100 induction coil
Take away other keys out of the vehicle

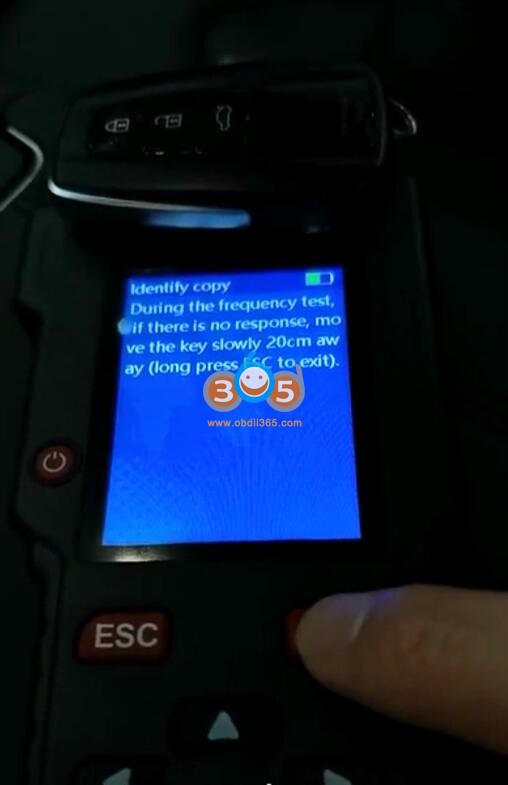

Frequency test, original key is dual frequency 433MHz 434Mhz

Press the button once on the remote.
If decoding failed after pressing the button for 2s, press it once again.
Decode key successfully.

Board version: 0020

Put Lonsdor FT/PH/LT20 smart key into KH100 induction coil

if kh100+ says wifi connection failed.
Search and pair with WiFi

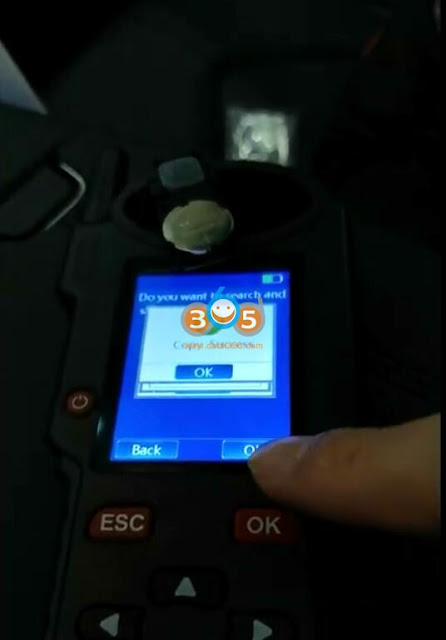

Copy key successfully.

Test the new Lonsdor smart key.

Remote control works, car starts.

https://www.obdii365.com/service/copy-toyota-8a-4d-smart-key-with-lonsdor-kh100.html

Lonsdor K518 Nissan Sentra B18 2021 Key Not Start?

 Problem:

Lonsdor K518ISE Nissan Sentra B18 2021 while adding key procedure in the process of pin code reading ignition was off automatically. Then communication failed. Now ignition cannot be on. Remote also not working. How to solve this. I used the 16+32 gateway cable.

Solution:

The BCM is bricked. No way to fix it. It has to be replaced now.
Visit dealer and be prepared to pay $1900.+
We had the same about 6 months ago
But, we were lucky because, was a salvage car being sold only for parts. Motor and Trans, etc. Nothing electronic at all.
But, when we checked with dealer this is what they said.
Very common problem. The Autel IM608 killed the BCM from 2021 Nissan Sentra, even I used the adapter for new Nissan.

Will Lonsdor K518 Program Range Rover Vogue 2020 All Keys Lost?

 Will Lonsdor K518ISE program 2020 Range Rover Vogue K8D2 RFA all keys lost?



Read RFA information, check if RFA is locked or not.

If RFA is locked, you have to replace RFA. If replace RFA successfully you can program all keys lost. Need luck.

If RFA is not locked, Try this menu, without replacing RFA chip. Function must have JLR AKL license activated and use Lonsdor new JLR key.

Menu path: Immo & Remote-LAND ROVER-Select from vehicle-Land Rover(2018-)-Smart key->Replace RFA (Beta) (skip program RFA procedure, direct program key).

We cannot guarantee it works 100%.

JLR pluto works key programming to the new landrover and jaguar up 2023.
