Lonsdor K518ISE Adds 2020 Ram 2500 Proximity

 2020 Ram 2500 proximity fcc id gq4-76t programming job can be done with Lonsdor K518ISE / K518S and L-JCD patch cord. (For K518S, need to pay extra 2020 Ram 2500 authorization).

Image 1: L-JCD patch cord by Lonsdor for Maserati Dodge Key Programming via OBD.



Here we go for the details of Lonsdor 2020 Ram 2500 smart key programming, it is pretty easy job via OBD.

Go to ” Immo & Remote ” -> “Dodge” -> Select from vehicle -> North America -> Ram 2500 -> 2019 – 2020 -> Smart key -> add smart key -> Downloading application ->

It requires “This vehicle requires to use L-JCD patch cord to communicate”, select “OK”.



Turn off and turn on warning light, click on “OK”.



Have Vin code, Part No and Key count for 2.



Please make sure there are no other devices near the smart keys.

Configuring system please wait…



After confirmation, complete the following operations within 60 seconds.



Put the smart key (to be added) at the central console, press release the unlock button twice to program.



Finally, job success within 2 mins .



Londsor K518 surprised me, great tool to have at a great price.

http://blog.obdii365.com/2021/08/19/lonsdor-k518ise-2020-ram-2500-smart-key-programming/

Lonsdor K518 Failed Program Toyota CHR 2019 AKL Solution

 Problem:

I have uploaded the original smart key of the Toyota CHR 2019 (8A chip). I am strangling to make all key lost on that car for 2 weeks with Lonsdor K518ISE.
My dealer send me Lonsdor FT01+v1.2 to generate and collect data.
It fails to collect and is asking for a different PCB.

Solution:

Wrong pcb, you need ft11 H0410C board to collect data.

FT11 is the only one that can collect data for all key lost.

i did this two days ago with chr 2019 too. work fine. You also need the Toyota AKL license.

http://www.lonsdor.org/lonsdor-k518-failed-to-collectdata-for-toyota-chr-2019-akl/

Lonsdor K518ISE Failed to Add Key Toyota Corolla 2019 2020?

 Problem:

Toyota Corolla 2020 Add key failed with lonsdor k518ise. Failed on 2019 as well.

Solution:

Lonsdor cannot make key for Corolla 2019/2020 because the chip is 4E.

Don’t work even with subscription and emulator. Lonsdor is good with 4D 8A (H) but not 4E.

It will ask for a key code from dealer.

How to Test Lonsdor 5 in 1 LKE Emulator?

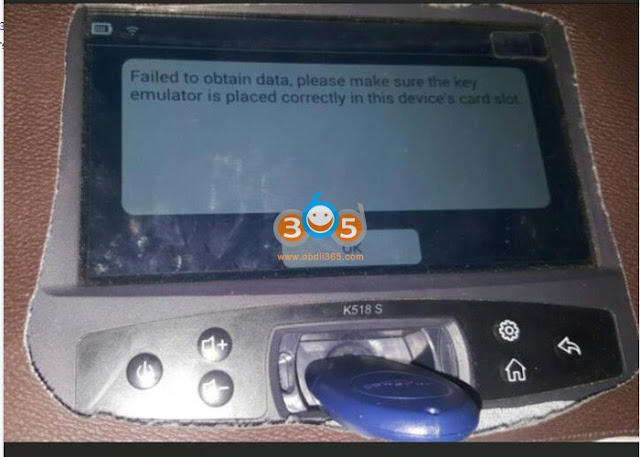

 Lonsdor K518ISE asked to put the LKE emulator into card slot then it failed to obtain data (shown error images below), how can i fix it?

How to test Lonsdor LKE 5-in-1 emulator?

Make sure you have installed a battery into the LKE emulator

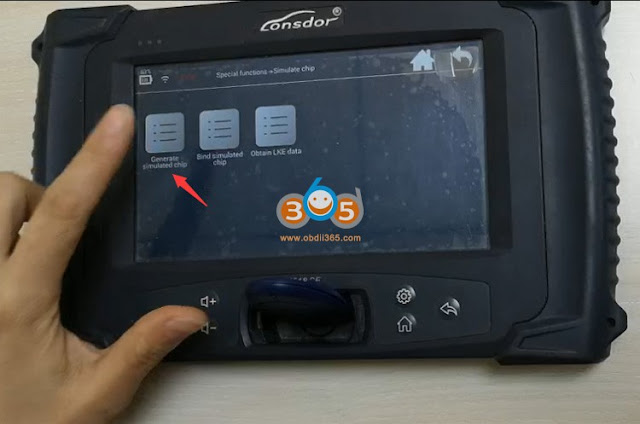

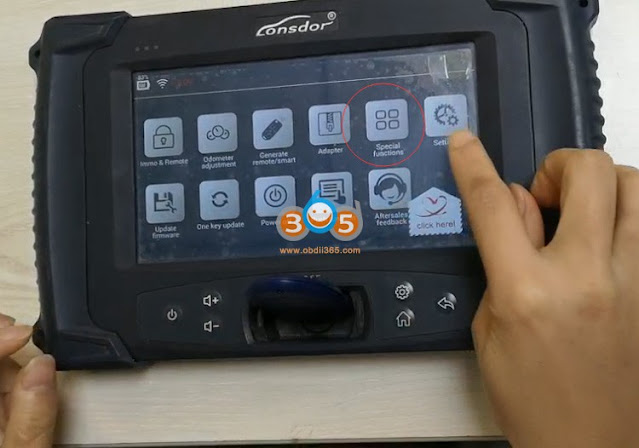

Go to Special Function- Simulate Chip – Obtain LKE data

Then Lonsdor will identify LKE information which means obtain LKE data success

Now you can generate an emulator with LKE, for example, here we generate 4D simulator without a problem

www.obdii365.com

http://www.lonsdor.org/test-lonsdor-lke-emulator-if-fails-to-obtain-data/

Volvo XC90 2016 All Keys Lost by Lonsdor or ACDP

 Offer the solution to program key for Volvo XC90 2016 with all keys lost.



1. Lonsdor K518ISE /K518S with new software license can program key for Volvo XC90 2016 AKL.

Image source: Lonsdor Volvo License for Latest XC40 XC60 XC90 S60 S90 V60 V90 Smart Key



Can read the latest Volvo Data CEM and program smart key for:
XC40 (2020-)
XC60 (2018-)
XC90 (2015-)
S60 (2020-)
S90 (2017-)
V60 (2018-)
V90 (2016-)



Add key: Yes

All keys lost: Yes

Requires disassembling CEM module



Online activation, no need shipping.



Good to know:

XC90 second generation came out around 2016.
And the XC60 second generation about 2018.



For Lonsdor K518 Latest Volvo Key Programming Operation Guide, please follow this guide:

http://blog.obdii365.com/2021/05/14/lonsdor-k518-latest-volvo-cem-reading-key-programming-guide/

2. Yanhua Mini ACDP can program key for Volvo XC90 2016 AKL.

Yanhua Mini ACDP and Volvo Module 20 can program key for:

Volvo XC40 (2020-), Volvo XC60 (2018-), Volvo XC90 (2015-)

Volvo S60 (2020-), Volvo S90 (2017-)

Volvo V60 (2018-), Volvo V90 (2016-)

Lynk Co (2018-)

1: Read CEM data by ICP without welding

2: Program key and learn key via OBD.



Click on “Volvo” -> “IMMO” -> Select “XC90 (2018-)”.

Enjoy!





Read also:

http://blog.obdii365.com/2021/07/13/yanhua-mini-acdp-volvo-2018-2020-key-programming-guide/
