Lonsdor 518 Program 2018 Evoque All Keys Lost via OBD

 2018 Range Rover Evoque is very difficult to program when lost all smart keys.  Here we program it in a crazy easy what via OBD only.  No EEPROM, No KVM out, no break the system.



Tools required:

Lonsdor K518ISE or K518S key programmer

Lonsdor new JLR software license

Lonsdor dedicated JLR proximity key

How-to: Program 2018 Evoque KVM system using OBD key

First, connect K518 obd cable to the vehicle
Located just below the driver side dash

First, select Immo and remote-> Land Rover ->Select from vehicle->Land Rover 2015-2018->Smart key->Select type 4 (program by obd)->All smart key lost and wait to connect

Choose all keys lost will delete the original key from system be sure before selecting

Update works for both FK72 and HPLA versions of KVM system

All keys lost, select cancel and confirm

Select desired key position and generate a working key

Place JLR OBD key to be generated into k518ise card slot, select ok to begin

Confirm use of Lonsdor dedicated key

Reading and witting key

Generated successfully. Confirm once the process complete, begin key testing by unlocking the vehicle
Everything works.
Key works straight.
The procedure is done in a few minutes very easy, program a brand new smart key no problem.



https://www.obdii365.com/service/program-2018-range-rover-all-keys-lost-with-lonsdor-k518ise.html

Program Smart 453 Key with Lonsdor K518ISE

 I tried to add a key on a Smart 453 year 2015. But Lonsdor K518ISE reads flash up to 73% and stops. Timeout. Tried several times, 73% was the highest score. I really thought that Lonsdor can do it.

I tried also under Renault twingo 3, but same situation.

At the end solved 453 by Lonsdor
So tried by flash reading/pin reading by Vivaro traffic.
Successfully done.
Also deleting/flashing.

Maybe it’s helpful for other users.

FYI: FVDI 2014 clone do the job very easy,

Lonsdor K518 Program Chrysler 300 2019 Smart Key

 Lonsdor K518ISE does succeed on some Chrysler Dodge smart key 2019-2020 but your need force cable connects to CAN wires bypass security SGW.

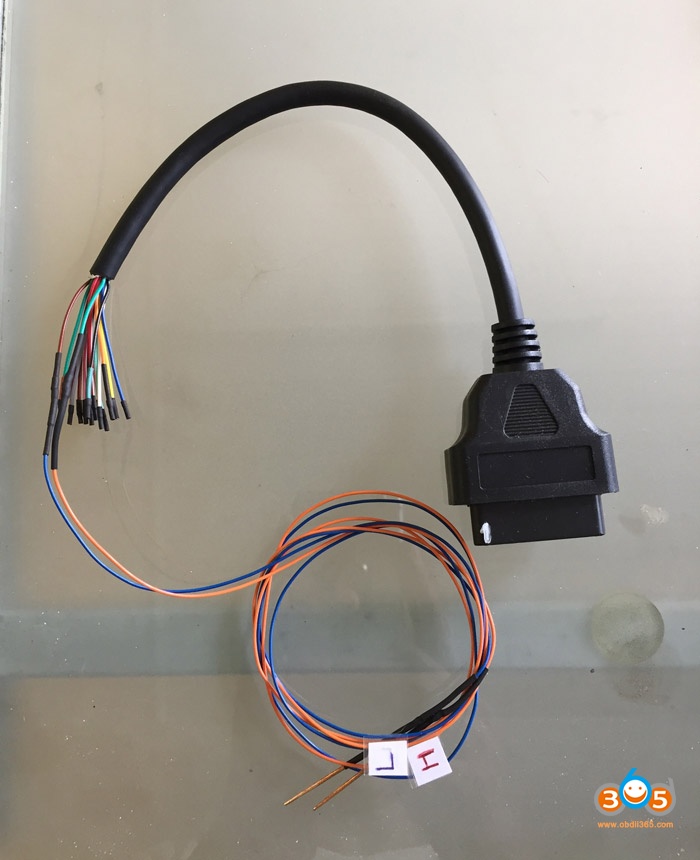

The Lonsdor L-JCD cable is for: Fiat, Chrysler automobile group from 2018 bypass SGW. Just Can H, L from OBD lonsdor to CAN H, L in car.



Easy to bo by yourself with female OBD connector.

How to program Chrysler & Dodge 2018 to 2021 smart key fob using Lonsdor k518 with L-JCD-cable?

We will show you how to program keys for newer dodge, Jeep, Chrysler, Ram vehicles 2018, and newer using L-JCD-bypass cable!!

Example: 2019 Chrysler 300 add smart key

*Better provide detail model year information to obdii365.com or Lonsdor technician to confirm.



Locate the SGW security gateway module under the passenger seat right here you need to take this cover, the sgw module is right over here, right in that area basically.  you will see there is two plus in There connected to a module you should unplug those plugs, unplug them and connect your L-JCD connector.

We have 3 keys, an old one, an original key and a new key to be programmed

In K518ISE, you go to Immobilizer->Chrysler->Select from vehicle->North American-300->2019-2020->Smart key ->Sdd smart key

I find the best way to learn new keys, is near here but no close to the start button

Then follow the instructions, it will be fine.

http://www.lonsdor.org/program-chrysler-2018-up-smart-key-by-lonsdor-k518-with-l-jcd-cable/

Lonsdor K518 Program Latest Volvo 2017- Smart Key?

 Update time: May 14th, 2021, Lonsdor K518 Volvo CEM Data reading & smart key programming for XC40(2020-)  XC60(2018-)  XC90(2015-) S60(2020-)  S90(2017-) V60(2018-)     V90(2016-). Both add key and all keys lost. This function requires to open Volvo License (with free LYNK&CO software).

Let’s take Volvo S90 and XC40 for example, how does Lonsdor K518ISE / K518S read the data and program for them.



Part 1. Lonsdor K518ISE / K518S add new smart key for Volvo S90.

(Supports all keys lost as well. Select All keys lost menu)

Prepare a new key (to be programmed), please make sure it doesn’t work before programming.



Dismantle the car CEM under steering wheel, use KPROG to read the data then reinstall the CEM back to car after saving the data.

Plug Lonsdor K518ISE / K518S to the OBD port of the car, go to function menu: Volvo S90 /2017- /Add smart key.



Select the saved CEM data file.



Please turn on the ignition.



Count of the programmed keys stored in car: 3.



Put the key (to be programmed) in the induction area (cup holder), and click on “yes”.



Programming…

One key is added successfully, click on “Ok” to program next key, or click on “Cancel” to exit.



Next is to test if the key’s remote works normally.

Yes, it work fine.



Then test if the smart start function works normally.



Programming is complete.



Watch video:



Part 2. Lonsdor K518ISE / K518S program key for Volvo XC40 all smart keys lost.

Prepare a new key (to be programmed), please make sure it doesn’t work before programming.



Require to dismantle CEM above driver’s pedal to read the data before hand. Finish this work at the work bench, reinstall the CEM back to car after saving the data.



Use the main cable to connect Lonsdor K518ISE / K518S to the OBD port of the car, go to function menu: Volvo XC40 /2020- /Add smart key lost.



Select the saved CEM data file.



AKL will delete all programmed keys, please prepare keys to be programmed.



Currently, the key number is 1 and become 0 after delete.

After delete the keys, start to execute key add operation, put the key (to be programmed) in the induction area (armrest box). then click on “OK”.



One key is added successfully, you can continue to program the next key.

In the same method: put the key (to be programmed) in the induction area (armrest box). then click on “OK”.



Two keys are added successfully, click on “Exit” if no key is to be added.



Next is to test if the key’s remote works normally.

Yes, it works fine.



Then test if the smart start function works normally.

Yes, it works fine too.



Programming is complete.

Alright, this is how does Lonsdor K518ISE /K518S Volvo S90 / XC40 CEM Data reading & programming.

Lonsdor K518 Released Latest Volvo Software

 Lonsdor K518ISE released super update on Volvo software on May 14th, 2021.

Supports latest Volvo CEM Data reading and smart key programming for
XC40 (2020-)
XC60 (2018-)
XC90 (2015-)
S60 (2020-)
S90 (2017-)
V60 (2018-)
V90 (2016-)

Supports both add key and all keys lost. Requires disassembling CEM module.

This function requires to open Volvo License (with free LYNK&CO)

How to Know Lonsdor JLR License is Activated?

 Question:

How do I know the Lonsdor JLR license is activated in my K518ISE machine?



Answer:

Usually, you will be informed by dealer by providing the K518ISE serial number.

You can also go to Immo & Remote->Land Rover->Select from vehicle-> Land rover (2015-2018)->Smart key-> Type 4 (program by OBD)>All smart key lost, if k518ise allows you to continue means the authorization has been activated. Otherwise, it will report paid function error (see Pic.2)

If you have done the payment and were told the license was activated but still got the paid function error, go One key update--check for updates and check again.

**Make sure your annual update subscription doesn't expire.
