Read Hyundai i20 2014 Pin Code ID46 Chip with Lonsdor K518ISE

How to: read Hyundai i20 year 2014 pin code id 46 chip by Lonsdor K518ise key programmer.

Connect K518 host with vehicle via OBD socket

Select Hyundai->Read Pin Code->46 Chip

Turn ignition switch to ON position

Reading pin code in progress

Verify reading

Lonsdor K518 read i20 ID46 chip 6-digit pin code success.

www.obdii365.com

http://www.lonsdor.org/lonsdor-k518ise-read-hyundai-i20-2014-pin-code-id46-chip/

Lonsdor K518ISE Program Suzuki SRX 2011 Key

New customer feedback: Lonsdor K518ISE has successfully add key to a Suzuki SRX year 2011 Mexican model.

Photo attached:

Successfully add 2 keys.

www.obdii365.com

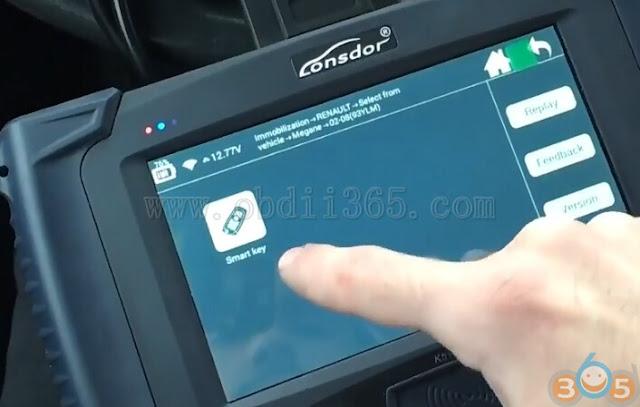

Lonsdor K518ISE Program Renault Megane 2005 Smart Key

How to: program Renault Megane year 2005 3-button smart key card using Lonsdor K518ISE key programmer via OBD.

Connect K518 host with vehicle via OBD diagnostic socket

Switch ignition on

Select Immobilizer->Renault->Select from vehicle->Megane->2002-2008 (93YLM)->Smart Key

Turn on emergency light and switch ignition off

Press Start button and press OK to continue

Open driver door

Lonsdor K518 asks to select key position

Insert smart key to be programmed into card slot

Program complete, program next key

Start vehicle with the new smart key

Succeed.

www.obdii365.com

http://www.lonsdor.org/lonsdor-k518ise-program-renault-megane-2005-smart-key-card/

Lonsdor K518ISE Read Cadillac SRX PIN code and Add Smart Key

Another test report: Lonsdor K518ISE key programmer read pin code and program smart key on Cadillac SRX from year 2010-2014 successfully.

Connect K518 host with vehicle via OBD diagnostic socket

Step 1: Read pin code

Select Immobilizer->Cadillac->Read Pin Code->Turn ignition to ON position

Read 4-digit pin code very fast

Step 2: Program smart key

Select SRX->2010-2014->Smart key->Type 1->Add smart key

Put the original car key in the car, don’t press the pedal brakes

Long press the Start button to switch ignition on

Insert the smart key to be programmed into the key slot, take the others out of car

Enter 4-digit pin code to access

Configuring system, wait for 10 minutes

Press Start button

Program succeed

Step 3: Sync key

Lonsdor K518 than prompts to hold down the start button for 12 sec

Release the Start button and wait for 5 sec

Press and hold the Start button until the dashboard turns on

Turn on the vehicle

Press the Start button and turn ignition off

Open and close the driver door, make sure all the electrical appliances are off

Configuring system, wait 30 sec

All key must be synchronized

Slam the brakes, press the Start button to start the engine and wait for 5 sec.

Done.

www.obdii365.com

How to use Lonsdor K518ISE to generate Mitsubishi 46 Chip

Lonsdor K518ISE key programmer released chip identification and generation functions on April, 2018 (including 4D Chip/46 Chip/48 Chip/T5 chip/7935 chip). Here’s the test report on reading and generating Mitsubishi 46 Key Chip.

Step 1: Identify key chip

Select Special Function->Chip auto-ID->Chip identification

Put chip to be identified into Lonsdor K518ise key slot

Lonsdor read chip type: 46 PCF7936 (HITAG2) chip

Step 2: Generate key chip

Select Special Function->Generate Key Chip->46 Chip->Mitsubishi

Put 46 chip into K518ise key slot

Generating…

Succeed.

Go back and identify key chip

Lonsdor K518 generated Mitsubishi 46 chip success

www.obdii365.com

http://www.obdii365.com/service/lonsdor-k518ise-generate-46-chip-for-mitsubishi-102091.html

Lonsdor K518ISE Program Hyundai Tucson 2017 Remote Key

How to: Program Hyundai Tucson 2017 key fob by using Lonsdor k518ise key programmer & keydiy remote.

Connect Lonsdor K518 host with vehicle via OBD socket

Select Immobilizer->Hyundai->Select from type->Remote Control System->16 PIN->Type 2(CAN)->Program Remote

Switch ignition on

Switch ignition off and remove key

Program remote control: Press Lock or Unlock button on the keydiy remote for more than 1 second

Program 1st remote success

Press Lock or Unlock button on the original remote for more than 1 second

Both remote programming completed

Test the remotes

http://www.obdii365.com/

http://www.lonsdor.org/lonsdor-k518ise-program-hyundai-tucson-2017-key-fob/
