Lonsdor K518 Pro Program Nissan Ariya 2022 All Keys Lost

 Tutorial: how to program Nissan Ariya 2022 all smart keys lost with Lonsdor K518 Pro and Nissan BCM 40 PIN Cable.





This function requires unplugging BCM connector then use Nissan BCM 40 PIN Cable to connect BCM.
All keys of this vehicle must be re-programmed.

*The Nissan BCM 40 cable is compatible with following models:

Nissan Rogue T33 2021-
Nissan Pathfinder 2021-
Nissan Sylphy B18 2021-
Nissan Ariya 2022-
Mitsubishi Outlander 2021-





The BCM module is in front of the assistant driver seat
Connect the BCM cable to the BCM.

We need to remove this port and connect to the female port.
Connect the male port to the female port.

Then connect BCM 40 cable with K518 pro via main test cable.

In K518 Pro, select Immo & Remote-> Nissan-> Select from vehicle->Asia-> Ariya-> 2022 onwards-> All smart key lost

Turn ignition off
Turn on emergency indicators
Start at P or Neutral gear.
The steering column in in unlocked state.

Reading immo data in process.

Then we start to read the key ID

Put the original key (with logo upwards) to the start button
Don’t remove the key from the ignition
Don’t press any button on the key.
Read key information.

Choose CANCEL to go to the next step.

K518 will pull 28-digit PIN of the vehicle through immo data.
The pin code can be used when all keys lost.

Put the key to the start button again
Program key successfully.

If you want to program another key just press OK to continue.

Unplug the connector, re-install the vehicle’s gateway modules.
Connect the device to OBD port, turn the ignition on.

Then test the new key.

http://blog.obdii365.com/2024/06/17/lonsdor-k518-pro-program-nissan-ariya-2020-all-keys-lost/

Add Porsche Macan 2018 MLB Key with Lonsdor K518 Pro

 Making a key for a new model of the MLB system, for a Porsche Cayenne, Macan 2017- has now become possible and takes several hours, but for this you need at least one working car key!

New Porsche 2017+ key



Here is an example of adding a spare key to a Macan 2018.



Order a original MLB Key. Use the KYDZ MLB tool to read data and generate dealer key.

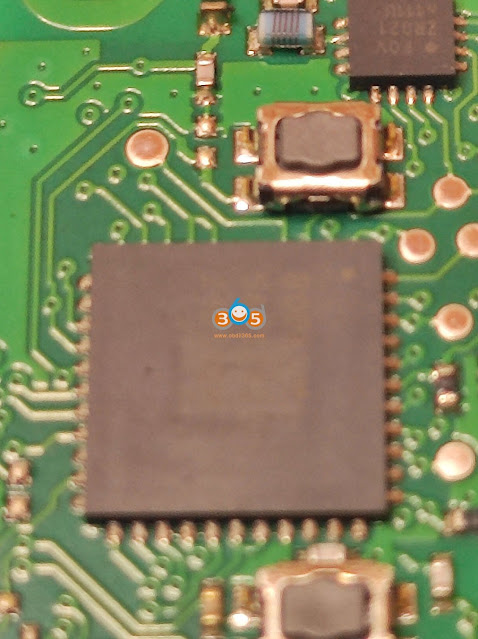

Don’t buy the solder free adapter yet. Here we use the remove chip solution.

If you have solder free adapter or the Xhorse VVDI MLB Tool, the job will be much easier.

Assembled original key and already prepared dealer key

After the dealer key is generated, based on the data, it is programmed into the car using Lonsdor K518 Pro and the owner receives a second working key for his car.

Now the car has two working keys programmed. Don’t lose your keys, especially if you don’t have a second one!
