Londsor K518 Pro Program Land Cruiser 2023 All Smart Keys Lost

 How-to: program Toyota Land Cruiser 2022-2024 8A smart key all keys lost with Lonsdor K518 Pro and FP30 bypass cable.

Procedure:

Go to IMMO & Remote->Toyota->Select from type-> All smart keys lost-> Type 3 (2022-)->8A

Select Back up immo data

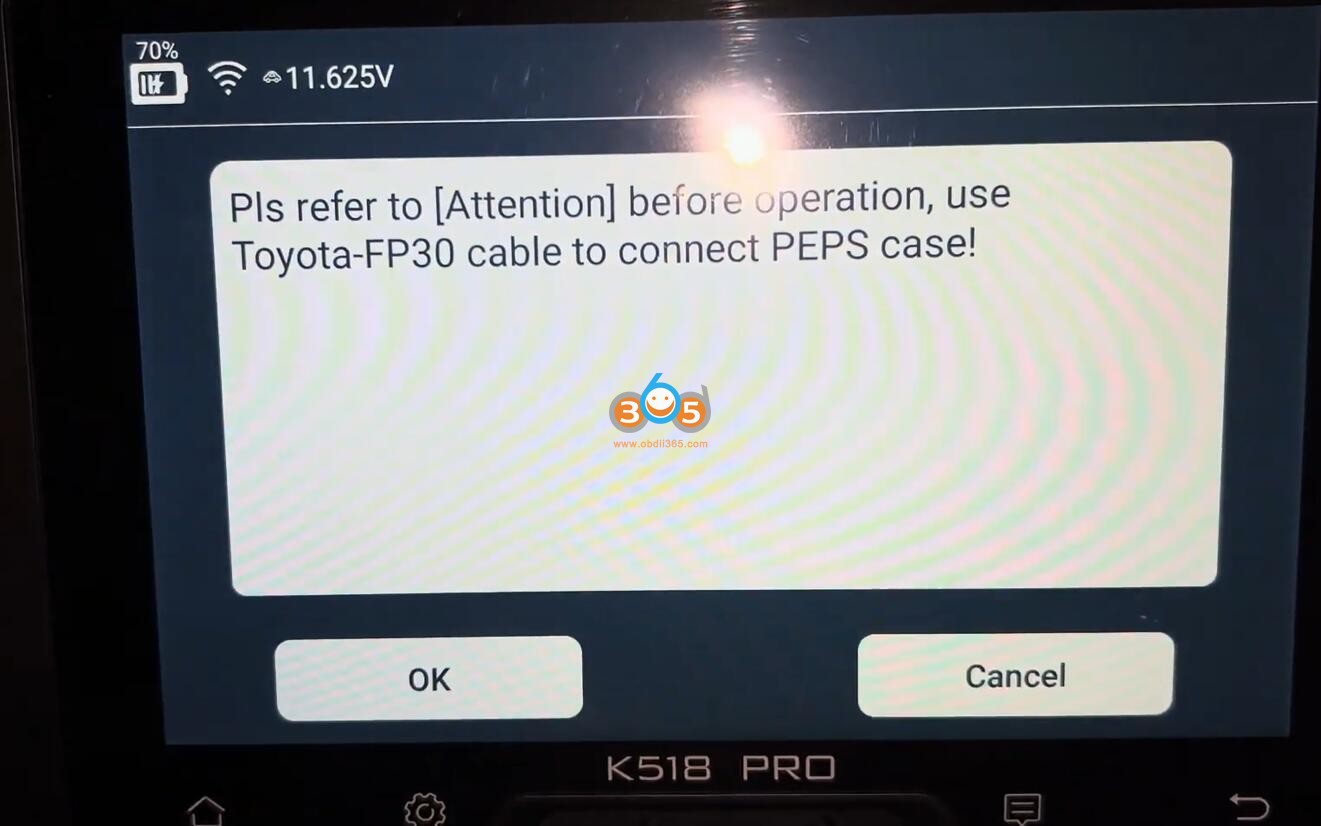

Lonsdor ask to connect Toyota FP3-cable to PEPS case.
Connect FP30 30-pin cable with PEPS module.

Calculating immo data.
Back up immo data successfully.

Go back and select Generate emergency key (Pro antenna) function. You don’t need to use the LKE emulator. The pro antenna can be used to replace the LKE emulator.
Connect K518 Pro antenna and place the antenna’s top into the card slot.

Select data just backed up.
Generate emgenecy key succesfully.

Select Add smart key.
Turn on igntion
Select Load the D-flash data of PEPS to acquire 12-digit pin code.

Calculating pin online.

Put the Pro antenna pro cable to the Start button.

Then put the new key to be programmed into the Start button.

Key learning is completed.

Test the new key.

www.obdii365.com

http://www.key-programmer.org/2024/09/23/londsor-k518-pro-program-land-cruiser-2022-2024-all-smart-keys-lost/

Lonsdor K518 Update Suzuki IMMO in Sep. 2024

Lonsdor K518 Pro and K518ISE series key programmers released new Suzuki software version on Sep. 18th, 2024.

Add following Suzuki immo key programming models:

SUZUKI\Africa\Alto\2009-2014

SUZUKI\Africa\Baleno\2016-

SUZUKI\Africa\Celerio\2015-2018

SUZUKI\Africa\Escudo\2005-2013

SUZUKI\Africa\Grand Vitara\2008-

SUZUKI\Africa\Ignis\2016-2020

SUZUKI\Africa\Swift\2008-2010

SUZUKI\Africa\Swift\2010-2014

SUZUKI\Africa\Swift\2013-

SUZUKI\Asia\Alto\Type 2

SUZUKI\Asia\Alto\Type 3

SUZUKI\Asia\Celerio\2014-2017

SUZUKI\Asia\Ertiga\Mechanical key

SUZUKI\Asia\Ertiga\Smart key

SUZUKI\Asia\Escudo\2005-2013

SUZUKI\Asia\Escudo\2016-

SUZUKI\Asia\Grand Vitara\Type 2

SUZUKI\Asia\Grand Vitara\Type 3

SUZUKI\Asia\Hustler\2014-2019

SUZUKI\Asia\Hustler\2020

SUZUKI\Asia\Hustler\2021-

SUZUKI\Asia\Ignis\Immobilizer\Type 2

SUZUKI\Asia\Kizashi\Smart key

SUZUKI\Asia\Landy\2016-

SUZUKI\Asia\Lapin\Smart key

SUZUKI\Asia\Mr Wagon\2011-2016

SUZUKI\Asia\Palette\2008-2013

SUZUKI\Asia\Solio\2010-2015

SUZUKI\Asia\Solio\2015-2020

SUZUKI\Asia\Spacia\2013-2017

SUZUKI\Asia\Swift\Immobilizer\Type 5

SUZUKI\Asia\Swift\Immobilizer\Type 6

SUZUKI\Asia\Swift\Smart key\Type 3

SUZUKI\Asia\SX4\Type 2

SUZUKI\Asia\Wagon R\Type 2

SUZUKI\Asia\Wagon R\Type 3

SUZUKI\Asia\Wagon R\Type 4

SUZUKI\Australia\Alto\2010-2013

SUZUKI\Australia\Baleno\1999-2001

SUZUKI\Australia\Baleno\2016-

SUZUKI\Australia\Baleno\2017-2021

SUZUKI\Australia\Celerio\2014-2017

SUZUKI\Australia\Grand Vitara XL7\2001-2006

SUZUKI\Australia\Grand Vitara\Type 1

SUZUKI\Australia\Grand Vitara\Type 2

SUZUKI\Australia\Grand Vitara\Type 3

SUZUKI\Australia\Grand Vitara\Type 4

SUZUKI\Australia\Grand Vitara\Type 5

SUZUKI\Australia\Ignis\2000-2005

SUZUKI\Australia\Ignis\2016-2022

SUZUKI\Australia\Jimny\1998-2002

SUZUKI\Australia\Jimny\2003-2007

SUZUKI\Australia\Jimny\2007-2015

SUZUKI\Australia\Jimny\2015-2018

SUZUKI\Australia\Jimny\2018-2022

SUZUKI\Australia\Kizashi\2010-2016

SUZUKI\Australia\Liana\2001-2007

SUZUKI\Australia\S-Cross\2013-2016

SUZUKI\Australia\S-Cross\2013-2020

SUZUKI\Australia\Swift Dzire\2010

SUZUKI\Australia\Swift\2005-2010

SUZUKI\Australia\Swift\2011-2020

SUZUKI\Australia\Swift\2011-2023

SUZUKI\Australia\SX4\2006-2010

SUZUKI\Australia\SX4\2010-2015

SUZUKI\Australia\Vitara\1998-2002

SUZUKI\Australia\Vitara\2015-

SUZUKI\Australia\Vitara\2015-2021

SUZUKI\Canada\Equator\2008-2012

SUZUKI\Canada\Grand Vitara\2007-2009

SUZUKI\Canada\Kizashi\2010-2014

SUZUKI\Europe\Alto\2000-2002

SUZUKI\Europe\Alto\2003-2008

SUZUKI\Europe\Alto\2009-2014

SUZUKI\Europe\Baleno\1995-2000

SUZUKI\Europe\Baleno\2014-

SUZUKI\Europe\Baleno\2017-2021

SUZUKI\Europe\Brezza\2016-

SUZUKI\Europe\Carry\1992-1999

SUZUKI\Europe\Celerio\Type 1

SUZUKI\Europe\Celerio\Type 2

SUZUKI\Europe\Ciaz\2014-

SUZUKI\Europe\Grand Vitara XL7\1998-2001

SUZUKI\Europe\Grand Vitara XL7\1998-2006

SUZUKI\Europe\Grand Vitara\1998-2001

SUZUKI\Europe\Grand Vitara\2001-2005

SUZUKI\Europe\Grand Vitara\2005-2007

SUZUKI\Europe\Grand Vitara\2007-

SUZUKI\Europe\Grand Vitara\2007-2012

SUZUKI\Europe\Grand Vitara\2008-

SUZUKI\Europe\Ignis\2000-2008

SUZUKI\Europe\Ignis\2004-2008

SUZUKI\Europe\Ignis\2016-2020

SUZUKI\Europe\Ignis\2017-2021

SUZUKI\Europe\Jimny\1999-2002

SUZUKI\Europe\Jimny\2003-2018

SUZUKI\Europe\Jimny\2018-2023

SUZUKI\Europe\Kizashi\2012-2014

SUZUKI\Europe\Liana\2001-2007

SUZUKI\Europe\Samurai\1998-2008

SUZUKI\Europe\S-Cross\2013-2019

SUZUKI\Europe\S-Cross\2014-2019

SUZUKI\Europe\Splash\Type 1

SUZUKI\Europe\Splash\Type 2

SUZUKI\Europe\Super Carry\2000-

SUZUKI\Europe\Swift\Type 1

SUZUKI\Europe\Swift\Type 2

SUZUKI\Europe\Swift\Type 3

SUZUKI\Europe\Swift\Type 4

SUZUKI\Europe\Swift\Type 5

SUZUKI\Europe\Swift\Type 6

SUZUKI\Europe\Swift\Type 7

SUZUKI\Europe\SX4 S-Cross\2013-2020\Type 1

SUZUKI\Europe\SX4 S-Cross\2013-2020\Type 2

SUZUKI\Europe\SX4\Type 1

SUZUKI\Europe\SX4\Type 2

SUZUKI\Europe\SX4\Type 3

SUZUKI\Europe\SX4\Type 4

SUZUKI\Europe\Vitara\Type 1

SUZUKI\Europe\Vitara\Type 2

SUZUKI\Europe\Vitara\Type 3

SUZUKI\Europe\Wagon R\Type 1

SUZUKI\Europe\Wagon R\Type 2

SUZUKI\Europe\Wagon R\Type 3

SUZUKI\Europe\Wagon R\Type 4

SUZUKI\Europe\Wagon R\Type 5

SUZUKI\Europe\X-90\1996-1998

SUZUKI\India\800\2007-2010

SUZUKI\India\Alivio\Smart key

SUZUKI\India\Alto\2007-2009

SUZUKI\India\Alto\2008-2014

SUZUKI\India\Baleno\2014-

SUZUKI\India\Ertiga\Smart key

SUZUKI\India\Grand Vitara\Type 1

SUZUKI\India\Grand Vitara\Type 2

SUZUKI\India\Grand Vitara\Type 3

SUZUKI\India\Kizashi\Smart key

SUZUKI\India\Omni\2007-2011

SUZUKI\India\Omni\2007-2013/08\Mechanical key

SUZUKI\India\Omni\2012-

SUZUKI\India\Ritz\2008-2016

SUZUKI\India\S-Cross\2013-2016

SUZUKI\India\Swift Dzire\Type 1

SUZUKI\India\Swift Dzire\Type 2

SUZUKI\India\Swift Dzire\Type 3

SUZUKI\India\Swift\Type 4

SUZUKI\India\Swift\Type 5

SUZUKI\India\SX4\Type 1

SUZUKI\India\SX4\Type 2

SUZUKI\India\Vitara\Smart key

SUZUKI\India\Wagon R\2012-2017

SUZUKI\India\Zen Estillo\2007-2009

SUZUKI\India\Zen Estillo\2010-

SUZUKI\Middle East\Alto\2009-2014

SUZUKI\Middle East\Baleno\1995-2001

SUZUKI\Middle East\Grand Vitara\Type 1

SUZUKI\Middle East\Grand Vitara\Type 2

SUZUKI\Middle East\Ignis\2000-2008

SUZUKI\Middle East\Kizashi\2012-2014

SUZUKI\Middle East\Splash\2010-2015

SUZUKI\Middle East\Swift\2014-2017

SUZUKI\Middle East\SX4\2010-2013

SUZUKI\New Zealand\Baleno\2017-2021

SUZUKI\New Zealand\Escudo\2005-2013

SUZUKI\New Zealand\Ignis\2017-2021

SUZUKI\New Zealand\Swift\2005-2010

SUZUKI\New Zealand\Swift\2011-2017

SUZUKI\New Zealand\Vitara\2015-

SUZUKI\Other Areas\Grand Vitara XL7\Smart key

SUZUKI\Other Areas\Kizashi\Smart key

SUZUKI\South America\Alto\2010-2014

SUZUKI\South America\Baleno\2014-

SUZUKI\South America\Brezza\2016-

SUZUKI\South America\Celerio\2014-

SUZUKI\South America\Ciaz\2014-

SUZUKI\South America\Ertiga\2013-

SUZUKI\South America\Grand Vitara XL7\2007-2009

SUZUKI\South America\Grand Vitara\1998-2001

SUZUKI\South America\Grand Vitara\2008

SUZUKI\South America\Grand Vitara\2008-

SUZUKI\South America\Ignis\2018-2020

SUZUKI\South America\Jimny\2018-2020

SUZUKI\South America\S-Cross\2013-2016

SUZUKI\South America\S-Cross\2014-

SUZUKI\South America\S-Presso\2020-

SUZUKI\South America\Swift Dzire\2013-

SUZUKI\South America\Swift\2009

SUZUKI\South America\Swift\2010-2016

SUZUKI\South America\Swift\2012-2020

SUZUKI\South America\SX4\2010-2013

SUZUKI\South America\Vitara\2015-

SUZUKI\South America\Vitara\2016-

SUZUKI\USA\Equator\2008-2012

SUZUKI\USA\Grand Vitara\2007-2009

SUZUKI\USA\Kizashi\2010-2014

SUZUKI\USA\Kizashi\Smart key
