Lonsdor K518 Key Programmer Program Volvo V60 Smart Key

Lonsdor K518ISE (same company made SKP1000) has wide key programming vehicle coverage , especially Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70).  Here’s demo guide on programming V60 smart key with K518.

Step 1:Read the CEM security data

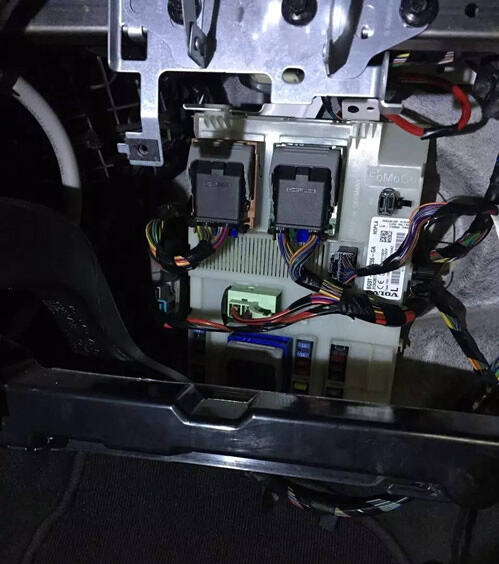

Volvo’s CEM is basically located behind the storage box which is in front of the co-pilot seat
Dismantle & read CEM to backup security data
volvo-v60-cem-1
volvo-v60-cem-2
Connection between Lonsdor K518ISE host, adapter and RN-01 board :
lonsdor-k518-v60-1
Read Volvo CEM please use RN-01 adapter.
Read CEM data and save it as VOV.BIN

Step 2: Program Smart Key
Reinstall CEM back to vehicle
Connect Lonsdor K518 host with vehicle via OBD socket
Select IMMOBILIZATION->VOLVO->Add a key
You can also program all keys lost if lost all keys
lonsdor-k518-v60-2
K518 ask to upload CEM data just read
lonsdor-k518-v60-3
lonsdor-k518-v60-4
Select and update CEM data VOV.BIN
Press on Start button
Follow K518 prompt then it will show you current key programmed: 2
lonsdor-k518-v60-7
Insert new key to be programmed into card slot
lonsdor-k518-v60-8
Follow K518 prompt to complete
Key programmed: 3
lonsdor-k518-v60-9
Program success.
lonsdor-k518-v60-10
Program smart key complete, remote will automatically generated
Test the new remote.
