Lonsdor K518I Program Peugeot 408 2013 All Keys Lost by OBD

Lonsdor K518ISE key programmer will read pin code from BSI and program key/all keys lost on PSA Peugeot Citroen and DS. Here’s a demo guide on programming Peugeot 408 year 2013 remote key when all keys lost by OBD.

Lonsdor K518ISE PEUGEOT Car List

SeriesOriginYearFuel TypeFunction
308OtherOtherOtherKey Programming
3008OtherOtherOtherKey Programming
307Other06-OtherKey Programming
308SOtherOtherOtherKey Programming
Read PIN CodeOtherOtherOtherRead PIN Code
Classified by SystemSmart KeyOtherOtherSmart Key System
Classified by SystemOrdinary KeyOtherOtherKey System
207OtherOtherOtherKey Programming
307Other-06OtherKey Programming
508Smart KeyOtherOtherSmart Key System
508Ordinary KeyOtherOtherKey Programming
408OtherOtherOtherKey Programming

Procedure:
Peugeot key programming requires a PIN code to access.  You can obtain pin code from original key card, by VIN or by some OBD devices (Lonsdor K518/VVDI2 PSA). It’s dangerous to disassemble BSI to calculate pin code.
peugeot-408-pin-code
Peugeot 408 OBD socket location
peugeot-408-obd-location
Step 1: Read Pin Code
Connect Lonsdor K518 host with OBD diagnostic socket
Select Peugeot-> Read PIN Code
lonsdor-k518-peugeot-1
Select Type 2:
*Type 1: If you still have working key. Insert working key, turn ignition on, turn ignition off (Repeat)
*Type 2: Have working key or all keys lost. If you select Type 2,  wipers will brush and headlights turn on. They will back to normal after 30 sec.
lonsdor-k518-peugeot-2

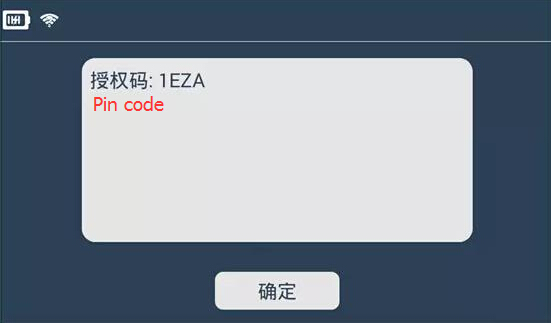

Read PIN Code from BSI by OBD successfully
lonsdor-k518-peugeot-3
Step 2: Program Key
Select Peugeot 408 (Chinese manual does not have 408 optional, you can enter from 308. English manual does have 408 model. Check K518ISE Peugeot list on the top)
lonsdor-k518-peugeot-4
Select Program Key
lonsdor-k518-peugeot-5
Turn ignition to ON position
lonsdor-k518-peugeot-6
Lonsdor K518ISE will read vehicle information, VIN, software version etc
lonsdor-k518-peugeot-7
Enter Pin code and confirm
lonsdor-k518-peugeot-8
Complete the operation within 15 sec:
Turn ignition off and turn it on
Press YES to continue
lonsdor-k518-peugeot-9
Program first key success.
Press YES to program next key.
lonsdor-k518-peugeot-10
Follow K518 prompts:
Program remote procedure:
  1. Turn ignition off and remove key
  2. Insert a new key and turn ignition ON
  3. Press any button on remote key for 5 sec and release within 20 sec
  4. Turn ignition off and remove key
  5. If need to program more key, repeat step 2-4
lonsdor-k518-peugeot-11
Done.
