Lonsdor K518ISE Program Audi Q7 Smart Key by OBD

Lonsdor K518ISE auto key programmer successfully program a smart key on an Audi Q7 post 2009 by OBD.  Same procedure goes to  Audi A6/A6L.

Step 1:  Read Immo data
Connect K518ISE host with vehicle via diagnostic socket

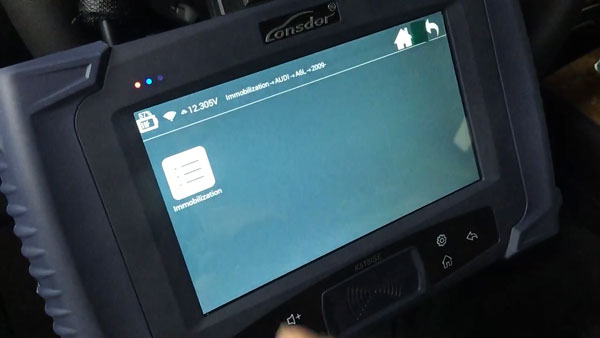

Select Immobilizer->Audi->A6L->2009 up->Immobilization
lonsdor-k518ise-audi-q7-1
lonsdor-k518ise-audi-q7-2
lonsdor-k518ise-audi-q7-3
lonsdor-k518ise-audi-q7-4
select Backup Immo data
lonsdor-k518ise-audi-q7-5
Turn ignition switch to ON position
Communicating
Lonsdor K518 host yellow indicator flashes
Reading immo data
lonsdor-k518ise-audi-q7-6

K518 read Audi VIN, CS and PIN
lonsdor-k518ise-audi-q7-7

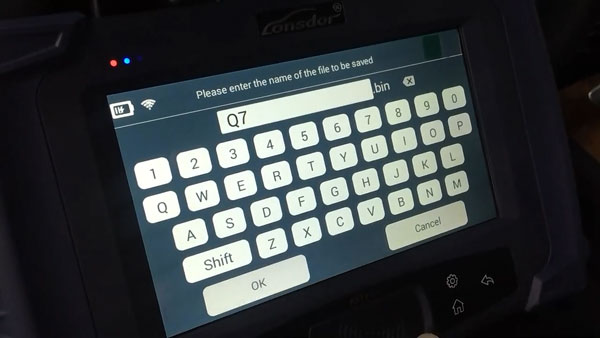

save immo data as bin format and confirm
lonsdor-k518ise-audi-q7-8

Backup data success

Step 2: Program Key
lonsdor-k518ise-audi-q7-9

Select Learn key
lonsdor-k518ise-audi-q7-10

All keys need to learn, otherwise will not start car.
Recommend to learn original car key first and then learn new key (smart key must be installed with battery)
lonsdor-k518ise-audi-q7-11

select bin file
Again k518ise display VIN, CS and PIN information
lonsdor-k518ise-audi-q7-12

select key number to program
Turn ignition switch to ON position
lonsdor-k518ise-audi-q7-13
Follow Lonsdor K518ISE key programmer instruction to insert key and turn ignition ON
After all keys have been replaced, click OK to finish key learning.
lonsdor-k518ise-audi-q7-15
Program key success.
