Lonsdor K518ISE Program Ferrari 458 Remote Key by OBD

Lonsdor K518ISE key programmer is able to program remote key on Ferrari 458, F12 and F149 currently. Here's the guide on programming Ferrari 458 remote with K518.


Procedure:

Step 1: Backup Immo Data
Connect K518ISE host with vehicle via diagnostic socket

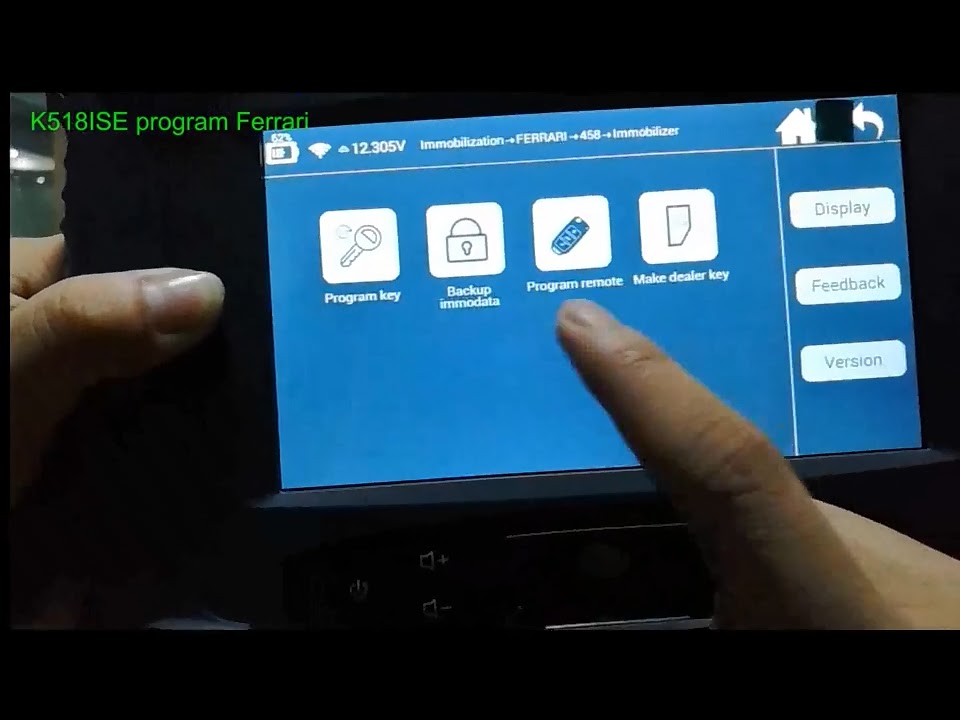

Select Immobilzation->Ferrari->458->Immobilizer->



Select Backup Immo Data function

Turn ignition ON
Communicating
K518ISE will show hardware and software information


Turn ignition OFF
Reading immo data, wait for 6 minutes


Lonsdor K518ISE will read Ferrari 458 pin code and key security data after 6 minutes
write down the pin code

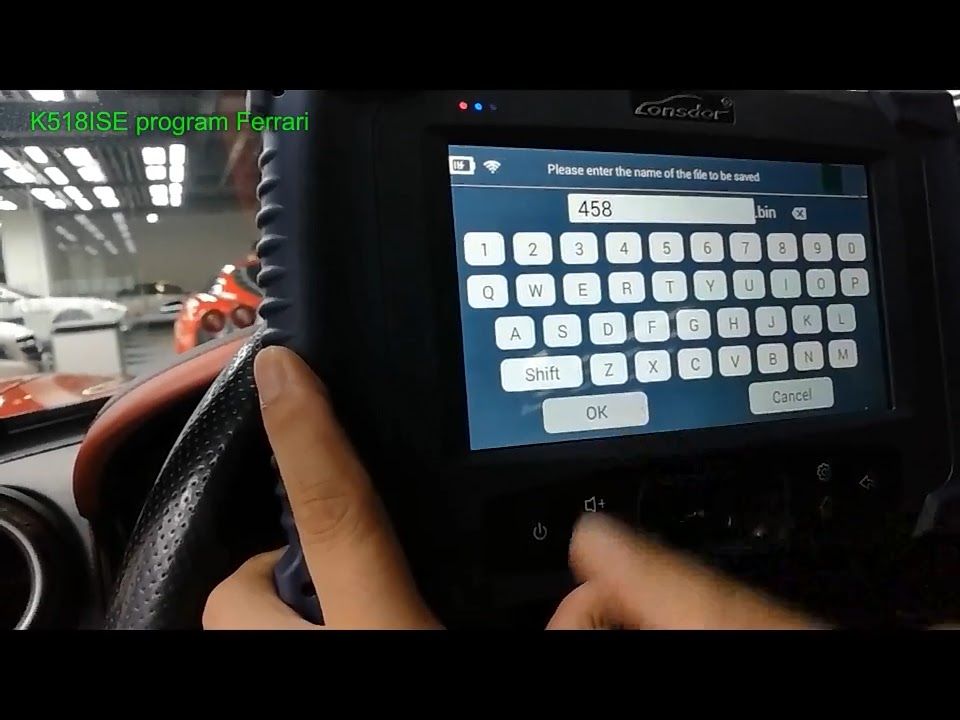

save immo data as bin format

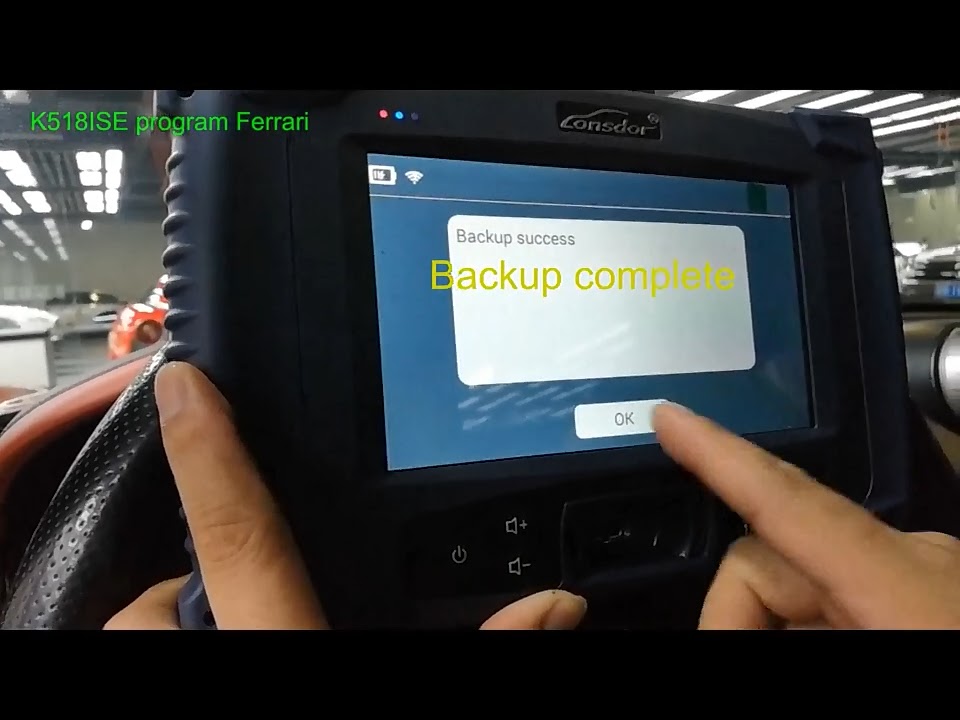

Backup success



Step 2: Program Key

Select Program Key function


The original working key also need to program.
New key to program must be a customized or a pre-written key



Turn ignition ON

Lonsdor K518 then will require to enter PIN code to access

Enter 5-digit pin code and confirm



Number of keys programmed: 1

Press YES to program next key or press NO to go back



Program key complete



Step 3: Program Remote
Select Program Remote function



Turn ignition ON
Again enter PIN code here


Hold remote key to be programmed in hand

Click OK

Click on remote control for 3 sec within 15 sec

press any button on remote key for 3 sec

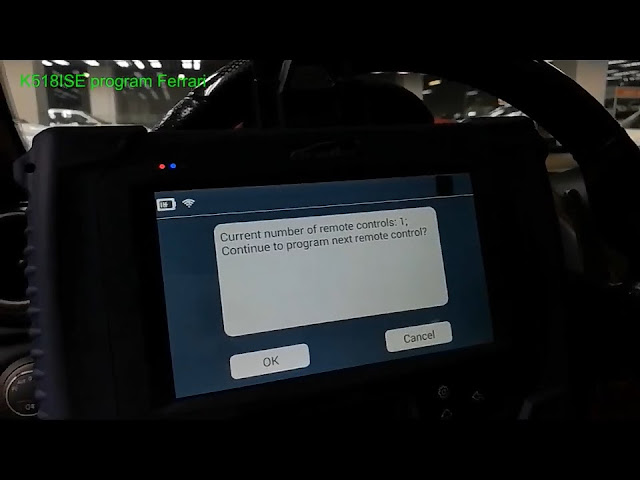

Number of remote control programmed: 1

Press YES to program next remote



Program remote complete.
