Lonsdor K518ISE Program Kia Ceed 2011 Remote Key

Here’s the guide to duplicate a key for the Kia Ceed 2011 with chip PCF7936, pin code calculation and key programming is performed by Lonsdor K518ISE key programmer.

Step 1: Calculate Pin Code

Connect K518 host wit vehicle via OBD socket

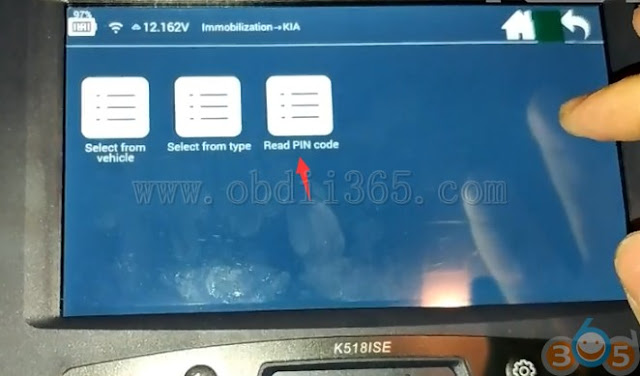

Select Immobilizer->Kia->Read Pin Code->46 Chip

Turn ignition to ON position

Read pin code in progress

Read Pin code success. The Pin is exactly the same as read by Xhorse VVDI Key Tool.

Step 2: Program chip key

Back to Kia menu

Choose Select from type->Immobilizer->Type 1(CAN)

Read key number

There are 2 keys existed

Select Program key function

Turn on ignition switch

Lonsdor K518 will require to enter Pin code to access

Programming key…

Program key success. Press Yes to program next key

Remove 1st key

Place next key and turn on ignition

Follow same procedure to program next key until program complete

The new key can start car.

Step 3: Program remote control

Select Kia->Select from type->Remote System->16 PIN->Type 4->Program remote

Note: If you are not sure about the system type, try one-by-one until success.

Don’t insert key into ignition

Program remote control: program LOCK or UNLOCK button for more than 1 s

Remote programming success.

Disconnect Lonsdor K518ISE.

Done.
