Lonsdor K518 Read Pin Code for Fiat 2005-2012

Question for Lonsdor K518:

When You are planning to add PIN read for older Fiat ??

(Doblo 2005 – 2009 or Ducato 2006 – 2012 etc. )

Answer by obdii365.com:

Easy.

The steps:

Read dump with FVDI

Then VVDI-Prog can calculate PIN from dump

(Tango doesn’t show pin, and you need pin for remote programming)

Then continue with Lonsdor – Immo learn + remote

The test on Doblo:

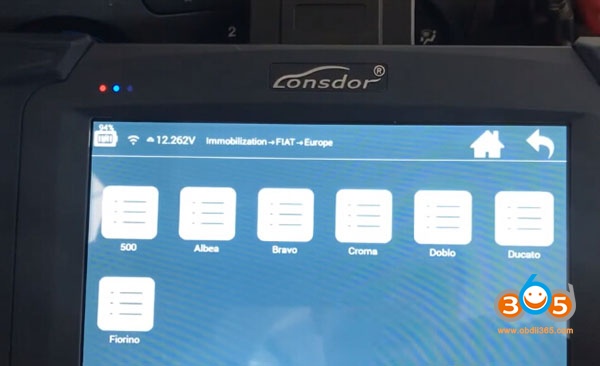

Select a model:

Fiat- Europe-Doblo-2009-

Lonsdor reads PIN codes

The function can read PIN code and save data

Pls use a working key to turn ignition ON

For a smart key, pls put it close to induction coil

Open the ignition switch

K518 manages to read PIN codes

PIN is saved

Pls use [program key] function to program a key

Done!

Read Renault Megane 1999 Pin Code with Lonsdor K518ISE

Report: Renault Megane 1999y read PIN ok with Lonsdor k518ISE key programmer.

procedure fuses 5A.

texas crypto 64 id , lost key, UCH module.

when reading the pin, remove the 5A fuse from UCH.

https://www.obdii365.com/wholesale/lonsdor-k518ise-key-programmer.html

Lonsdor K518ISE Advanced function Expires in 3 Days Error Solution

Problem:

Got an ultimatum if I don’t pay yearly subscription in the next 3 days I will not able to use pay modules in Lonsdor K518ISE, you get this message when you switch on the tool, how much is the yearly subscription?

Error:

“Advanced function is about to expire. Contact dealer to purchase and renew.

Excess time: 3 days 21 hours 1 minute”

Solution:

Pay for the K518ISE yearly subscription here:

https://www.obdii365.com/wholesale/lonsdor-k518ise-yearly-update-subscription.html

After renew,go to check for update.

Now the subscribed menu is renewed.

Lonsdor K518ISE Program Toyota Corolla 2012 72G Remote Key

The task is to make 2 new master keys after lost all keys on a 2012 Toyota Corolla car with key chip 72G. Immobilizer reset, key programming and remote control programming is done with Lonsdor K518ISE car key programmer.

Main steps:

Step 1: Generate 72G key chip

Step 2: Reset IMMO

Step 3: Program 1st master key

Step 4: Add another master key

Step 5: Program remote control

Step-by-step procedure:

Step 1: Generate 72G key chip

In Lonsdor K518ISE, select Generate key chip->4D->Toyota 72G

Place a blank chip into K518 card slot, press OK

Select a master key position

Generating

Generate 72G key chip succeed.

Step 2: Reset IMMO

Select Immobilizer->Toyota-> Select from vehicle->China->Corolla->2012 up-> Mechanical key (with 72 G)->Reset Immobilizer (all key lost)

Turn off ignition switch

Switch ignition ON

Getting immo data

Switch ignition off and remove key

Turn on ignition again

Programming key in progress

Switch ignition off and remove key

Step 3: Program 1st master key

Follow steps below to program key within 120s (here we need to program 1 master key)

Program 1 master key:
Insert the first master key, switch ignition on and wait 5 sec, and then switch ignition off 5 times. When immo indicator goes off, programming completed.

1st master key programming completed

The key can start car.

Step 4: Add another master key

Select Add key function

A master key is required before remove or add other keys.

Insert the programmed original key into ignition

Insert the key to be programmed. Don’t turn on the ignition switch.

Wait for the security light go off. Programming completed.

Step 5: Program remote control

In Lonsdor K518, go to Immobilizer->Toyota->Select from vehicle->China->Corolla->2012 up->Remote->Program remote

Turn on ignition switch

Open the driver door. When the internal locks is open, open other doors.

Reading data

Press and hold the lock and unlock buttons of the remote to be programmed for 2 sec simultaneously within 30 sec, press the lock button once, click OK to continue

Remote programming succeed.

www.obdii365.com

http://www.lonsdor.org/program-toyota-corolla-2012-72g-remote-key-with-lonsdor-k518ise/

Lonsdor K518ISE Program VOLVO XC60 2014 Smart Key

New customer feedback: VOLVO XC60 2014 Spare Key (semi-smart key) well done with Lonsdor K518S key programmer.

Q: How long does it require?

A: Takes less than half an hour.

Q: From where did you get the security data? It require to dismantle something to read it?

A: on the table read CEM with RN-01 PCB dongle takes around 2 mins, after go to the car and program.



Q: Can I do all keys lost?

A: Yes. same job.

Procedure & Photo attached:

Turn on ignition switch

In Lonsor K518, select Immobilizer->Volvo->XC60-> 2009 up->Smart key->Add Key

Select security data (read before operation)

Press Start button

Read vehicle information, part number, VIN etc

Identify current number of keys: 1

Insert new key to be programmed to car slot

Communicating

Key programmed success

Here’s the step-by-step procedure on Volvo XC60 key programming with Lonsdor k518ISE.
